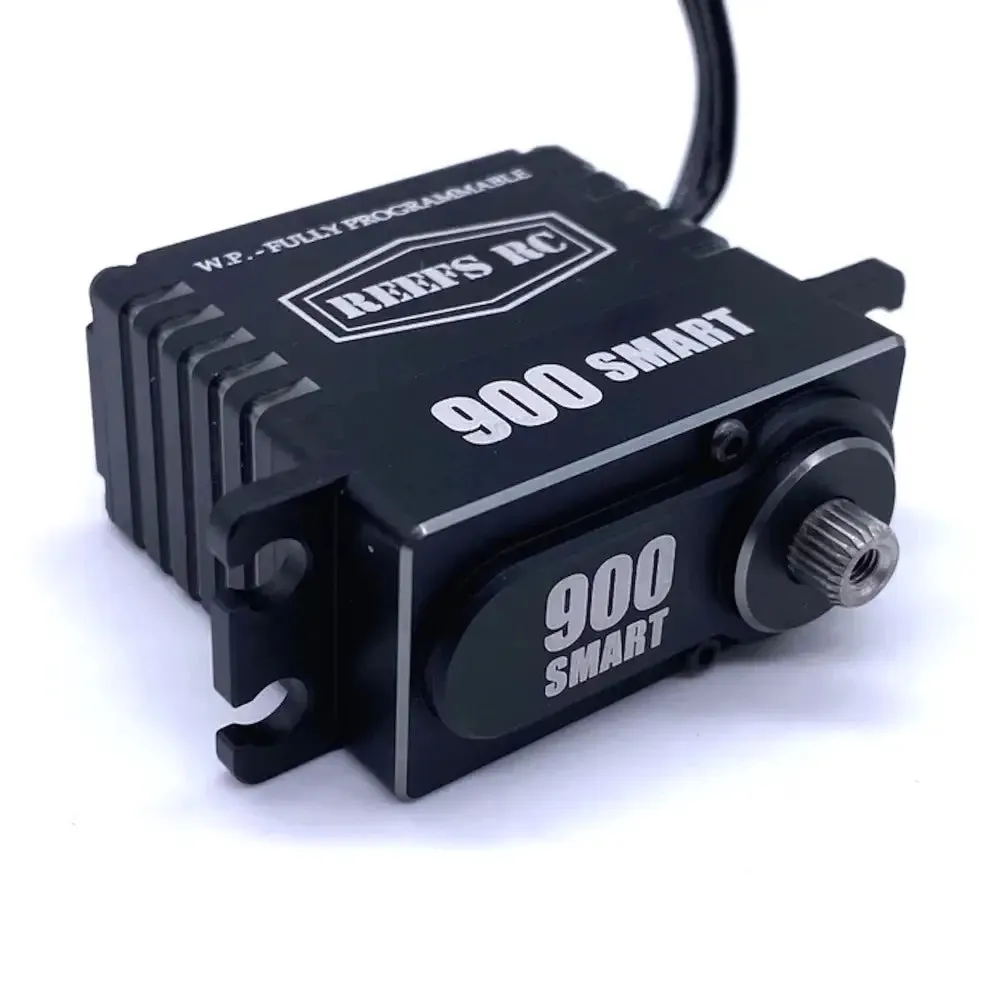

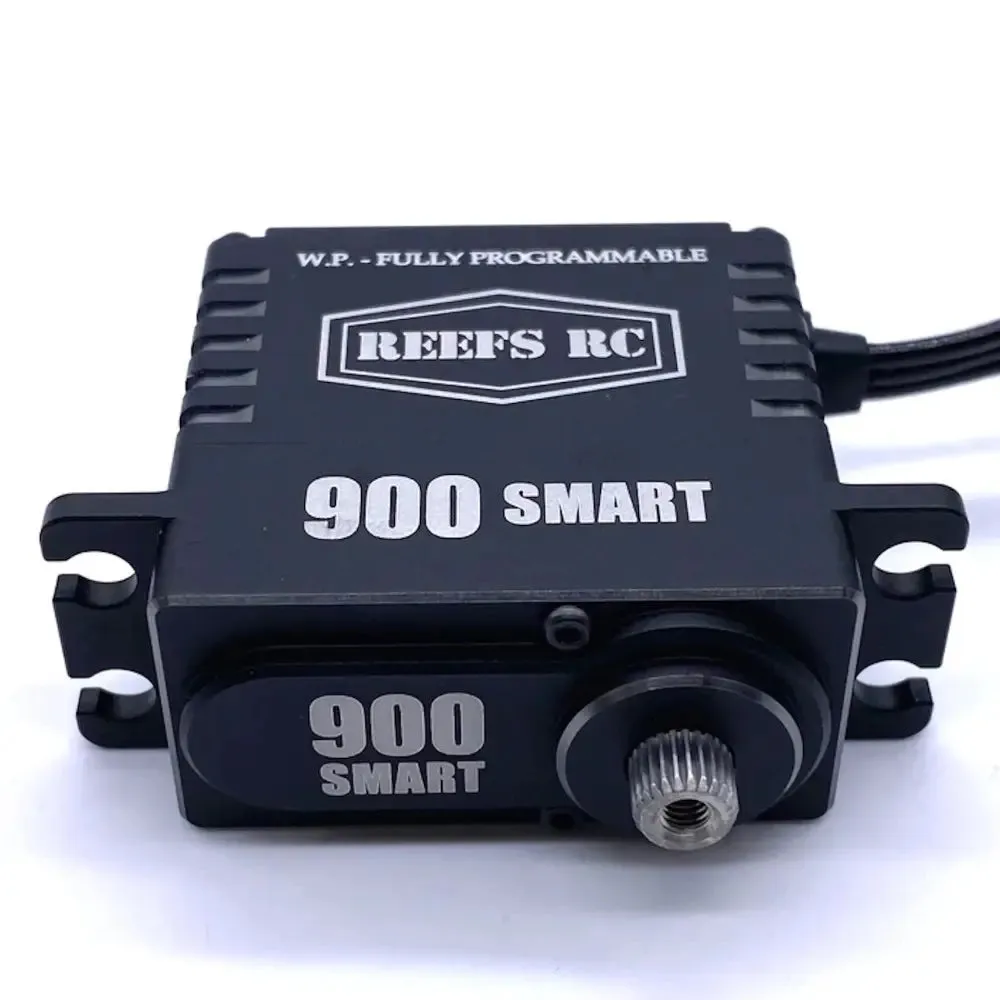

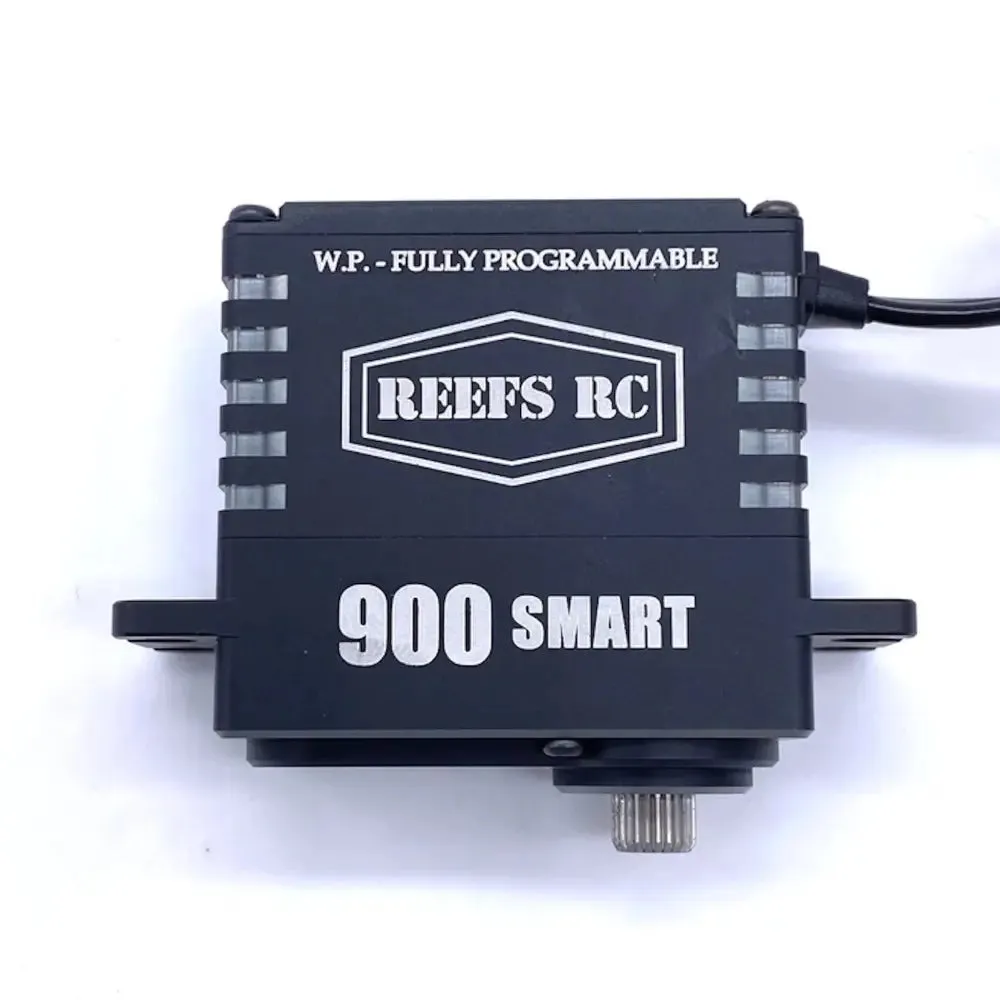

• High Torque High Speed Brushless SERVO or WINCH
• Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK and Software. BUILT IN PREPROGRAMMED WINCH CONTROLLER
• SUBMARINE WATERPROOF: 7 Point Seals w/ GRAY HEAT SINK, Magnetic Angle Sensor, Pulse Width Modulation Control
• 4 Pole Brushless Motor, REEFS LINK required for Programming, Voltage 4.8V - 8.4V
• Internal: Steel Gears / All CNC Aluminum Casing, Bearing Type: 4 Ball Bearings

Torque: 720oz @ 6v/ 830oz @7.4v/ 940oz @8.4v

- Speed: .13sec @6v/.12sec @7.4v/.10sec @8.4v

- Spline: 25T / Dead Band Width: 2¦Ìs

- BEC Not Req. Recommended for max performance

Unload Current: 460mA @ 4.8V / 500mA @ 6.0V / 540mA @ 7.4V / 580mA @ 8.4V

Load Current: 5000mA @ 4.8V / 5800mA @ 6.0V / 6800mA @ 7.4V / 7400mA @ 8.4V

For programming, the USB Link is required.
